Document tree


Css

The document tree:

All HTML documents are trees.

Each level of the tree is described in the same manner as a human family tree, with ancestors, descendants, parents, children and siblings. CSS rules are based on the document tree.

Eg:

<body>
<div id="content">
<h1>Heading here</h1>
<p>Lorem ipsum dolor sit amet.</p>
<p>Lorem ipsum dolor <em>sit</em> amet.</p>
<hr>
</div>
<div id="nav">
<ul>
<li>item 1</li>
<li>item 2</li>
<li>item 3</li>
</ul>
</div>
</body>

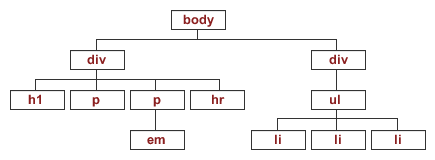

tree1



Ancestor:

An ancestor refers to any element that is connected but further up the document tree - no matter how many levels higher.

The <body> element is the ancestor of all other elements on the page.

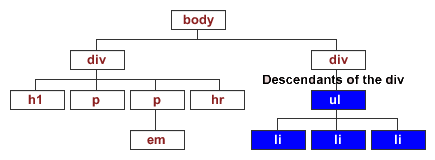

Descendant:

A descendant refers to any element that is connected but lower down the document tree - no matter how many levels lower.

Eg: all elements that are connected below the <div> element are descendants of that <div> in blue.

tree2

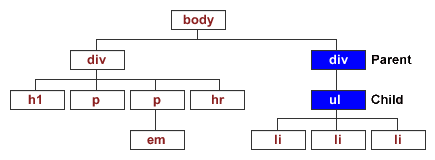

Parent:

A parent is an element that is directly above and connected to an element in the document tree.

tree3



Child:

A child is an element that is directly below and connected to an element in the document tree.

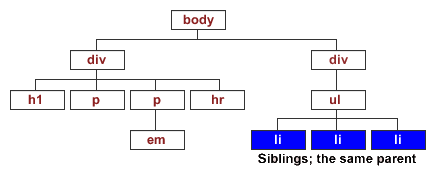

Sibling:

A sibling is an element that shares the same parent with another element. In the diagram below, the <li>'s are siblings as they all share the same parent - the <ul>.

tree4


Created on: Thursday, March 10, 2011 by Andrew Sin
